FLI Repeater Mount
Key facts:
- Certified mount for FLI Repeater App (DCS1100)
- Vibration-free installation of smartphone or tablet
- Compatible with Maximum Pilot View Kit (MPVK)
- Optional USB power supply (Type A + C)
- Minimal footprint when not in use
- EASA approved (Minor Change, MCA 350-000004)
- FAA, TCCA, ANAC recognition through bilateral agreements
Overview
The FLI Repeater Mount is a certified mounting system for tablets and smartphones running the FLI Repeater App (DCS1100). It ensures stable, vibration-free display during flight while maintaining pilot ergonomics and cockpit efficiency. The system is designed for the Airbus H125/AS350 and fully compatible with the Maximum Pilot View Kit.
Mounting Options
- Floor Mount:

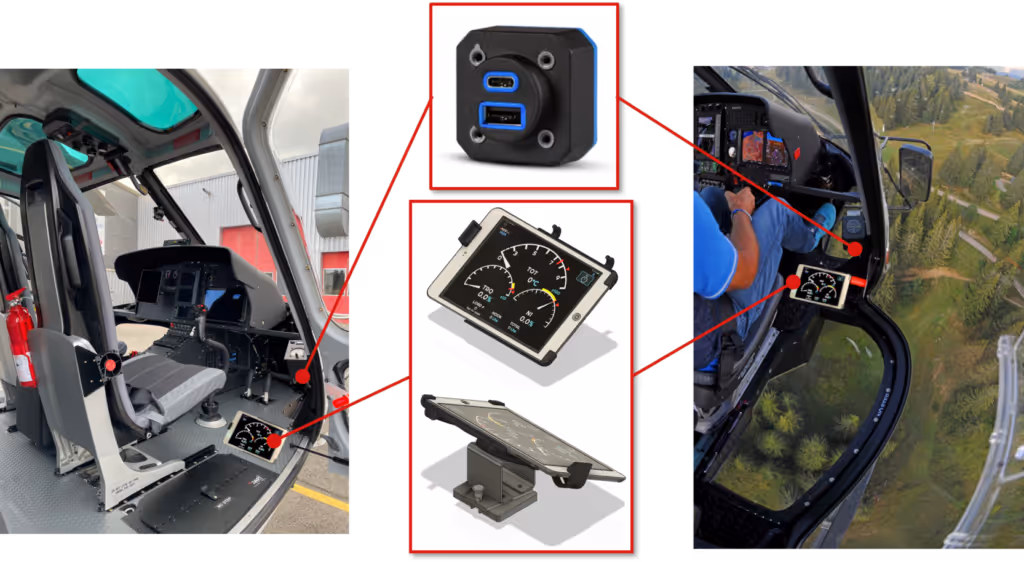

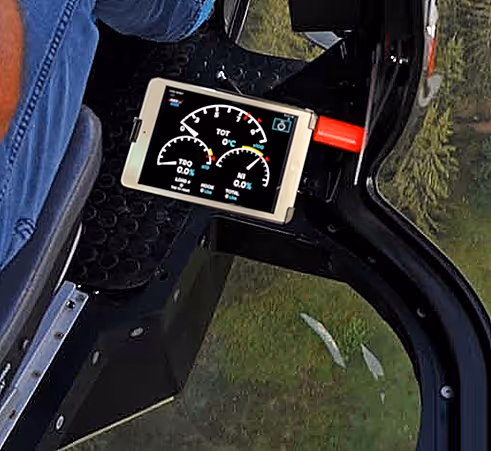

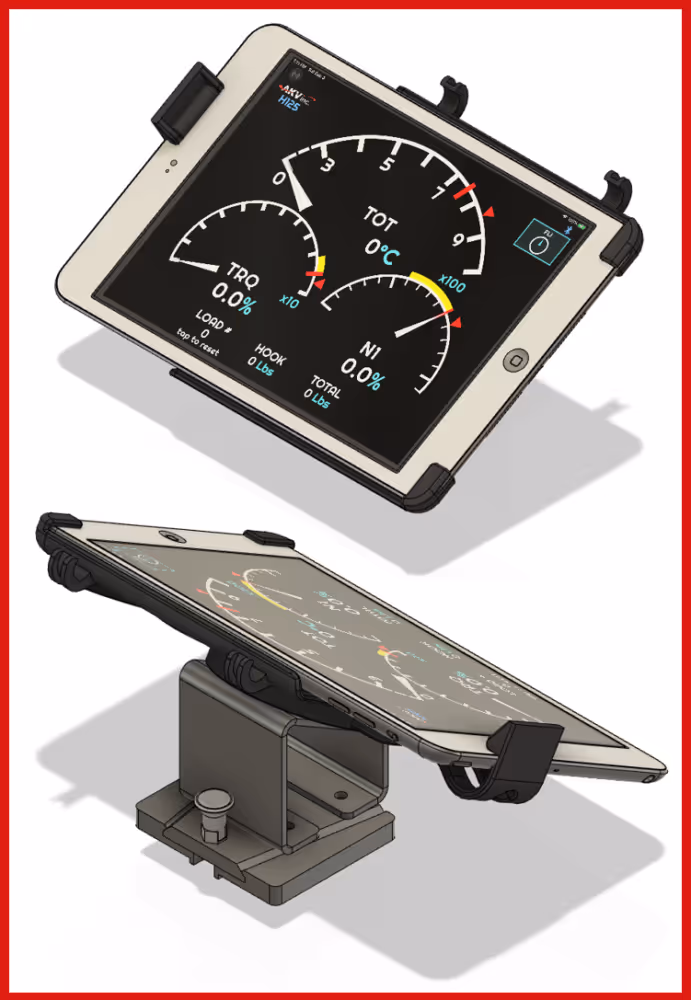

Located on RH or LH cockpit floor, compatible with DART vertical reference floor windows and MPVK. Designed for tablets and smartphones. Bulky parts can be removed without tools for a minimal footprint. - MPVK Door Mount:

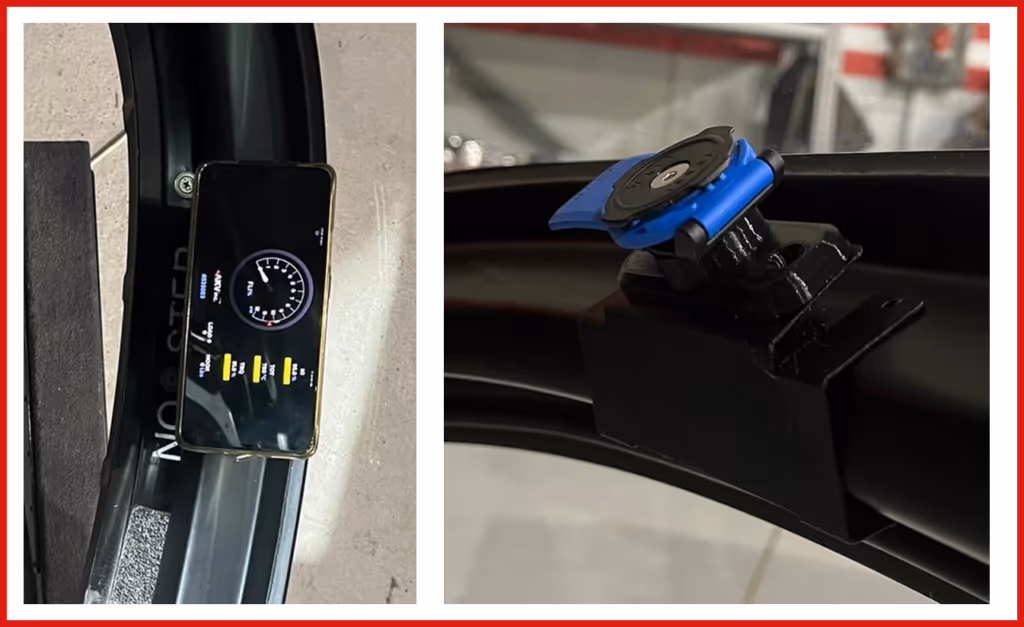

Mounting solution directly on the MPVK door frame. Designed primarily for smartphones. Optional USB charging available. - MPVK Floor Window Mount:

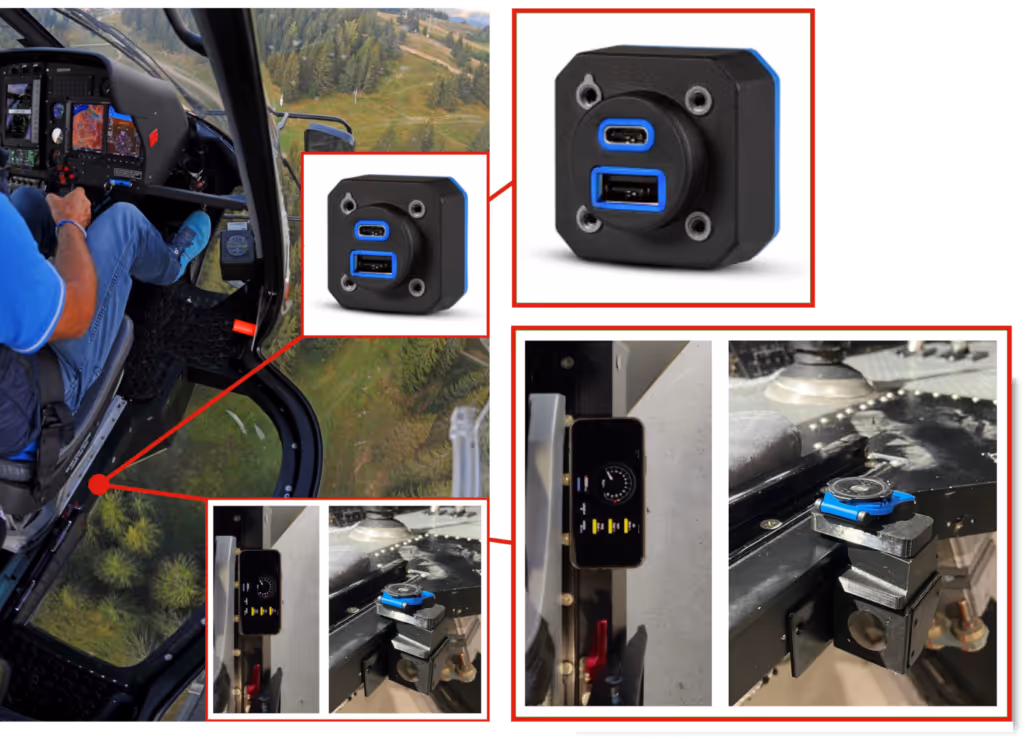

Installed in the MPVK floor window frame next to the pilot seat. Removable elements allow operation without conflict with the MPVK lid.
Pilot Benefits
- Easy and flexible installation
- USB charging support (Type A + C) keeps devices powered
- Engineered with customer feedback for maximum usability
- Vibration-free readability under all flight conditions
- Modular setup: only small fixed provisions remain when not in use
Current Status
- Available and in use for H125 / AS350
Certifications
- Minor Change Approval: MCA 350-000004 (EASA)
- FAA, TCCA, ANAC recognition via bilateral agreements
- Additional validations possible upon request
Aircraft Compatibility
- Airbus AS350 / H125 (B2 / B3 variants)
- Other aircraft on request
Step 1: Selection of Mount
Choose between floor, door, or floor window mount depending on cockpit configuration and pilot preference.
Step 2: Installation
- Can be installed by Part-145 organization or SRS mobile team
- Simple installation, no structural modifications required
- Optional USB charging ports integrated into cockpit power system
Step 3: Operational Use
- Mount ensures vibration-free visibility of FLI Repeater App
- Removable bulky parts reduce cockpit footprint when not in use
Support
- Full documentation and technical support from Swiss Rotor Services
- Approved for permanent and temporary installations
Which devices are supported?
Smartphones and tablets, including iPad Mini, configured for the FLI Repeater App.
Does it work with MPVK?
Yes, fully compatible with the Maximum Pilot View Kit (door and floor window mounts available).
Is USB power included?
Yes, optional 28 VDC power supply with USB Type A and Type C outlets.
Can I remove the mount when not needed?
Yes, bulky parts are removable without tools, leaving only minimal fixed provisions.
Is it certified?
Yes, approved under EASA Minor Change with recognition by FAA, TCCA, and ANAC.
Where can the mounts be installed?
On cockpit floor, MPVK door frame, or MPVK floor window frame.
