Long-Line Equipment
Key facts:
Key Facts
- Lengths: 2–60 m (6–200 ft), customizable
- Payloads: 500–10’000 kg (1’100–22’000 lbs)
- Proven in demanding lift ops since 1992
- Electrical & non-electrical versions available
- Swivel and Cone systems (Type 1200 & 4500)
- Accessories: dampers, adapters, secondary hooks, double hook
- No exposed cables or aerodynamic weak points
- Quick-connect systems for fast operation
Overview
Swiss Rotor Services Long-Line Equipment has been proven in more than 30 years of demanding lift operations. From precision sling loads to heavy transport, the systems are engineered for safety, aerodynamic efficiency, and pilot-friendly handling. Configurable for logging, construction, firefighting, SAR, and aerial transport, they cover payloads from 500 kg to 10’000 kg.
Variants & Applications
- Electrical Logging & Transport Long-Line (TLP_14 / TLP_50)
With integrated cargo hook release, proven in 2’000 hours of operations without maintenance. Recommended with damper to absorb shocks. - Transport & Construction Long-Line (TLL_14 / TLL_50)
Designed for heavy lifts up to 5’000 kg (11’000 lbs). Aerodynamically optimized, avoids tail rotor contact during fast flight. - Non-Electrical Long-Line
Cost-effective, robust, and adaptable to secondary hooks. - Logging Long-Line
Specially designed for forestry operations, available with double hook systems and high durability protection covers.
Components & Accessories

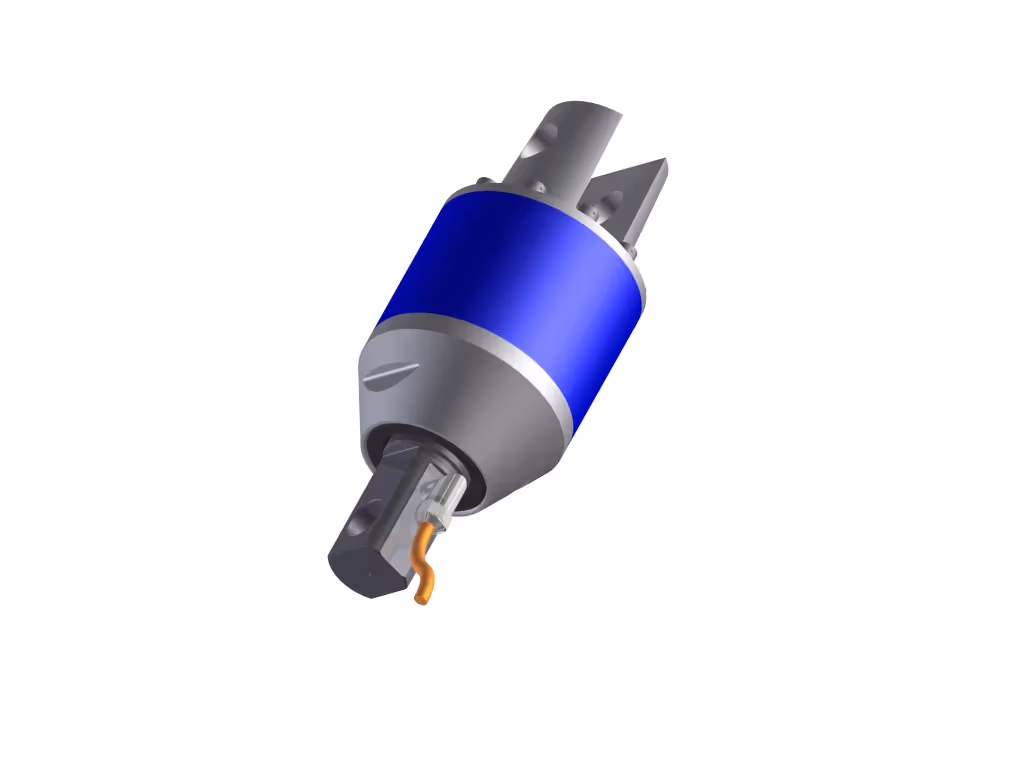

- Swivel Type 1200 / 4500: Prevents rope twisting, sealed bearings, robust slip rings.
- Cone Type 1200 / 4500: End piece of long-line, shock-resistant, with integrated contacts.
- Connectors & Adapters: Allow integration of multiple long-lines or special equipment (e.g. water buckets).

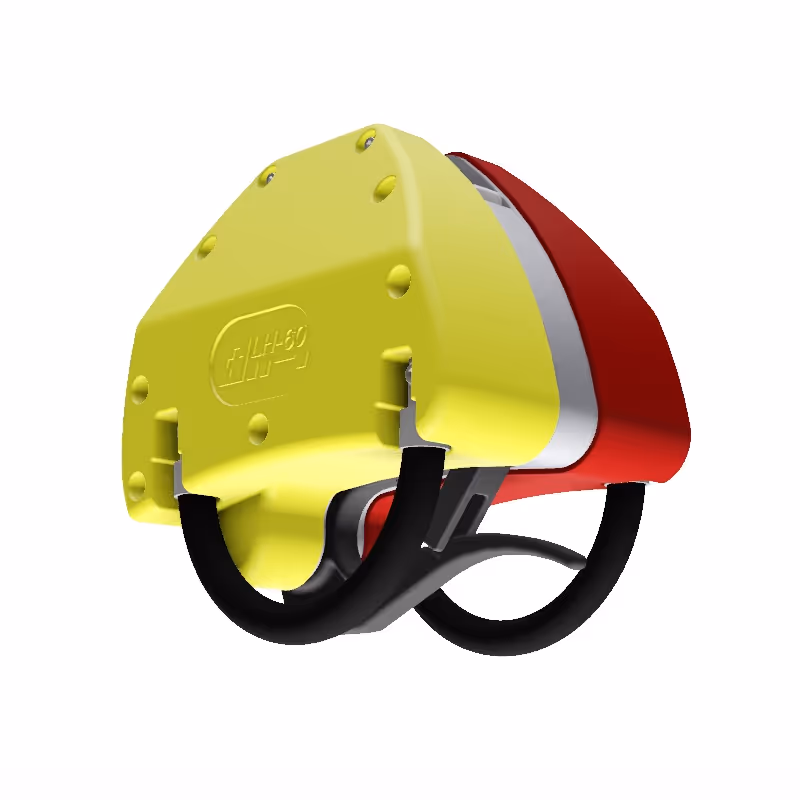

- LH-60 Cargo Hook: The world’s first EC-type certified single cargo hook, 6’000 kg capacity, with permanent magnetic lock and visual open/closed indicator.

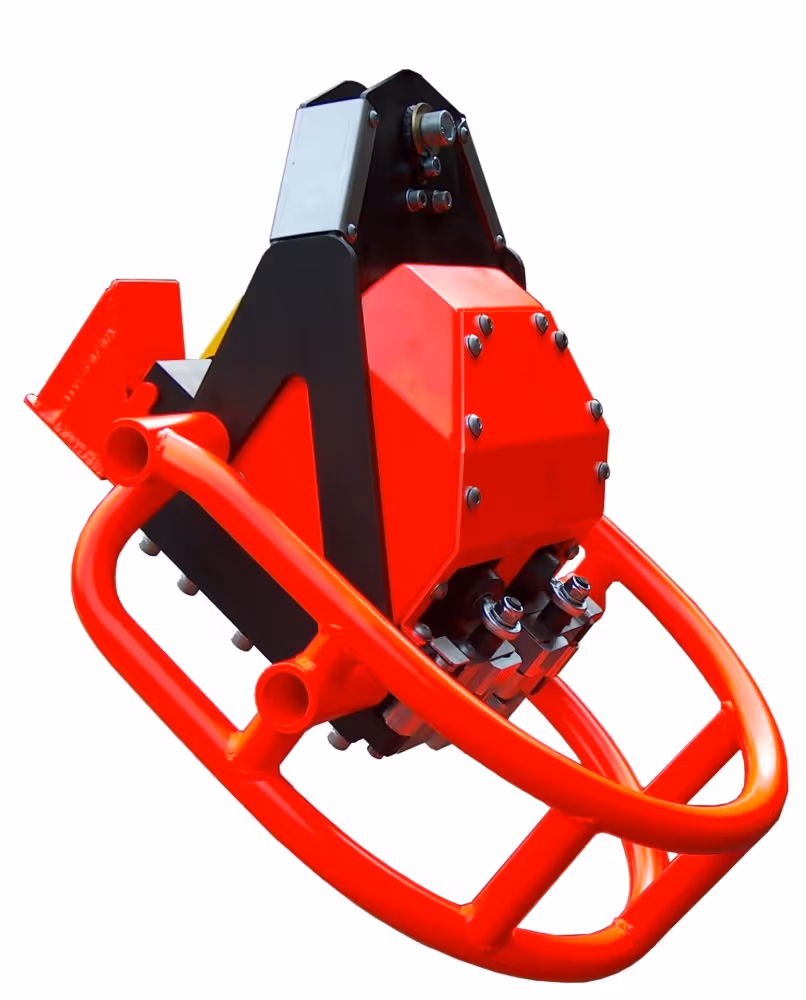

- Double Hook: Nubbin system, electromagnetic lock, robust steel design, TBO 1’000 hours.
Advantages
- Aerodynamically optimized: no “plum-shaped” rope sections, no exposed cables
- Proven reliability: thousands of operational hours worldwide
- Flexible: modular system with interchangeable components
- Quick-connect systems: reduce setup and changeover times
- High safety standards: EC certifications, patents, and field-tested durability
Current Status
- In active use worldwide since 1992
- Widely adopted in forestry, firefighting, and heavy-lift operations
Certifications
- Compliant with EC Machinery Directive 2006/42/EC
- Certified under EASA / CS 27.865 for LH-60 Cargo Hook
- Patents in EU and USA (e.g. US 8,016,333 B2)
Aircraft Compatibility
- AS350 / H125 series
- SA315 Lama
- Bell 407
- A119 Koala
- Heavy lift: K-1200 K-MAX, AS332 Super Puma, KA-32 Kamov, EC225
Step 1: Consultation
Payload and mission requirements defined with the operator.
Step 2: System Selection
Appropriate long-line, swivel, cone, and hook chosen according to aircraft and mission profile.
Step 3: Installation
- Quick-Connect-System, no special tools required
- Possible to install via Part-145 organizations or SRS mobile team
- Accessories and protection covers available for logging ops
Step 4: Operational Deployment
- Ready for sling missions immediately after setup
- Full compatibility with existing cargo hooks and equipment
Support
- Spare parts and replacement ropes available
- Test equipment (field approved) offered for regular checks
What lengths are available?
From 2 m to 60 m (6–200 ft), custom lengths on request.
What payloads can the long-lines handle?
From 500 kg (1’100 lbs) up to 10’000 kg (22’000 lbs).
Are both electrical and non-electrical versions available?
Yes, to suit different operational requirements.
Which helicopters are compatible?
AS350/H125, SA315 Lama, Bell 407, A119, Super Puma, Kamov KA-32, EC225, and more.
How are cables protected?
No exposed cables; all connections sealed and aerodynamically optimized.
What is the LH-60 Cargo Hook?
The most reliable lower cargo hook, with more than 3’000 hrs of operations without unintended openings.
Do swivels and cones need special tools?
No, Quick-Connect-System allows fast handling without special tools.
Is maintenance required?
Minimal – systems proven in thousands of hours without extra maintenance.
